Low Noise DC Voltage Source

LP6016-01/LP6016-01P

Bias-voltage and control-voltage source for sensors and devices

lp6016_01

▲ LP6016-01

lp6016_01

LP6016-01/LP6016-01P is a low voltage DC voltage source equipped with LAN/USB/RS-232 interface.
The output noise voltage is extremely small with a maximum of 10 μVrms, and the temperature stability of the output is excellent at less than ±10 ppm/°C.
It can be used as a DC bias source for photodiodes and a control voltage source for crystal oscillators.
Please refer to "Applications" page for further information.



2U,Half-rack size

Output Noise: 10 μVrms Bandwidth 10 Hz to 20 MHz
Output Voltage Stability: ±10 ppm/°C typical
Output voltage:
LP6016-01: 0 to +16.1 V (Positive), 0 to -16.1 V (Negative)
  Positive and negative settings can be selected from tracking mode or
  independent mode.
LP6016-01P: 0 to +16.1 V (Dual Voltage Output / V1, V2)
  V1 and V2 settings can be selected from tracking mode or
  independent mode.
Setting resolution: 500 μV*
Setting accuracy: ±(0.03% +250 μV)*
Maximum current: 100 mA
Interface: USB, RS-232, LAN
*Modifications of setting resolution and accuracy are available upon requests prior to placing your orders.
Please don’t hesitate to ask for details and pricings.
Modification example,
   Setting Resolution: 100 µV
   Setting Accuracy: ±(0.03% +75 µV)

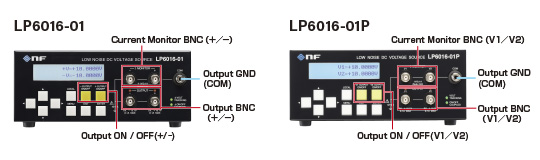

front/rear

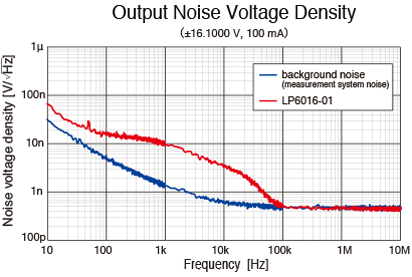

graph01

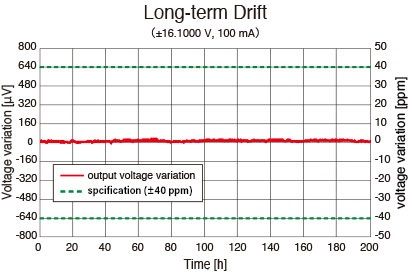

graph02
