Product Information

AC Power Source
Programmable AC/DC Power Source
KP3000S/KP3000GS

*
Stable Output
*

*Low distortion *Low output noise *4 times the maximum current


Low distortion, low noise, and stable output are achieved. This power source can supply stable power to various types of loads such as inductive and capacitive loads for low power-factor loads such as equipment with large-capacity noise filters and large power output transformers.
Also, with its high-quality waveform output, this unit can be used as an AC stabilized power source for precision measurements such as the power consumption and standby power of electronic equipment.


Example of output waveform
Example of output waveform
(Capacitive load 1000 µF)


*
Variable Current limiter Function
*

*Current RMS value *Positive/negative current peak value

Output current limiting can be set with positive and negative peak values and effective value.
After the activation of the limiter, the output can be automatically restored or turned off after a set time.
This function is effective for limiting the rush current of motors,large- capacity capacitors, etc. and protecting against abnormal current caused when prototype operations fail.

???????
Peak value setting
top of this page

*
Various Types of Output
*

*AC mode *DC mode *AC + DC mode
With AC 3 kVA, full-power 3kW output is also available for DC. The capacity is not reduced in DC mode. Since the AC+DC mode is also available, this power source can be used for a variety of applications.
A high S/N ratio is achieved in each mode. Use of the current limiter function in DC mode enables the high performance use of the unit as a DC power source. In addition, in AC+DC mode, simulations can be performed in which the DC component is generated temporarily, such as a sudden change in voltage.


100 V range
200 V range
Resolution
AC
Output voltage
0 V to 155 V
0 V to 310 V
0.1 V
Max. current
3 0A

15 A
Frequency
AC: 40 Hz to 550 Hz, AC+DC: 1 Hz to 550 Hz
0.1 Hz
DC
Output voltage

-220 V to +220 V
-440 V to +440 V
0.1 V
Max. current
30 A
15 A


*
Output Voltage Correction
*

There are cases where a voltage drop occurs at the load end due to wiring. The KP3000S/ KP3000GS are equipped with functions to always supply the set voltage.

*Remote Sensing
Switches the voltage detection point used for measurement and output voltage correction to either output terminal or sensing input terminal. Output is corrected by using this together with AGC and Auto Cal.
* AGC (Automatic Gain Control)
This function performs continuous correction to ensure equality between the RMS values of the detection point voltage and the output voltage setting value. Even if the load fluctuates, correction is performed automatically to maintain the same value as the setting value.
*Auto Cal (Auto Calibration)
Each time Auto Cal is turned on, this function measures the detection point voltage and performs correction to ensure that the output voltage RMS value is equal to the voltage setting value.
top of this page


*
Output Waveform
*

*Sine wave *Clipped sine wave*Arbitrary waveform

In addition to sine waves, clipped sine waves and arbitrary waves can be output. A power source test is supported that can simulate a fault in a commercial line.
A clipped sine wave can be set with a crest factor or clipping ratio. An arbitrary wave can be easily created by using the optional control software and can be saved for reuse in the main unit memory through an external interface or in USB memory.
Clipped sine wave
Clipped sine wave
Arbitrary waveform
Arbitrary waveform

*
Measurement Function
*

Abundant measurement functions comparable to those of a wattmeter are provided.
Three measurement values can be selected for enlarged display to improve working efficiency in production lines.

*Measurement items
Voltage (rms value, average DC value, peak value), Current (rms value,
average DC value, peak value, peak hold value), Power (active power,
apparent power, reactive power), Load power factor, Crest factor,
Sync frequency, Harmonic current (up to 40th order), CO2 emissions
measurement functions
top of this page

*
Interface / External Control I/O
*

Interfaces and an external control I/O provide support for system integration and automation.
*Interfaces
RS-232, USB, GPIB *1
*External control I/O
Control input:
output on/off, sequence control, memory recall (basic setting memory, sequence, simulation)
Status output:
power on/off, output on/off, protection operation, limiter operation, output range, step synchronization of sequence and simulation, etc.
interface


*1
Option for KP3000S; Standard equipment for KP3000GS
*2 KP3000S only


*

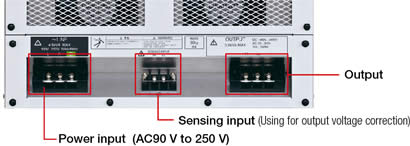

Power Supply Input Flexibility
*

This power source can be used regardless of the power supply environment.
????
top of this page

*
Sequence
*

Programming of various test patterns such as test repetition, combinations of complex test conditions, and long-term testing enable automated test sequences. Power source tests for each destination can be performed efficiently. When purchased with the optional control software, this power source can be freely programmed with very long and complex output patterns

* Option for KP3000S; Standard equipment for KP3000GS
Sequence
  • Number of steps: max. 255 (in 1 sequence)
  • Setting items:
    step time, output range, AC/DC mode, DC voltage, AC voltage, frequency, waveform, start phase, stop phase, phase angle, step termination, jump count, etc.
  • Sequence control: start, stop, hold, resume, branch 1, branch 2
  • Number of memories: 5 (nonvolatile)
Example of output pattern
top of this page

*
Simulation
*

Simulates a problem in the power AC line such as blackout, voltage rise, voltage drop, abrupt phase changes, or abrupt frequency change, thereby enabling all types of AC line simulation such as prototype evaluation and product inspection.
When purchased with the optional control software, this power source can be easily programmed with various test conditions.

* Option for KP3000S; Standard equipment for KP3000GS

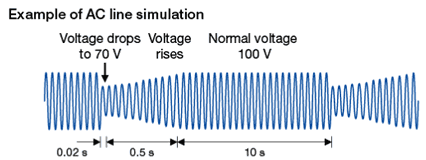

AC line simulation
  • Number of steps: 6 (Initial, Normal 1, Trans 1, Abnormal, Trans 2, Normal 2)
  • Setting items:
    step time, output range, AC voltage, frequency, start phase, stop phase, trigger output, etc.
  • Waveform: sine wave
  • Number of memories: 5 (nonvolatile)
?????????
