AC Power Source
Programmable AC Power Source
DPseries
Topics
ball LAN (LXI) interface availablenew
ball Phase angle setting range are expanded to 0.0 to 359.9deg.new
(Multi phase system with connected 1p2W models)
ball High Power model up to 144kVAnew
ball DP series Type K (160V/320V output)new
System Lineup

Please select required capacity for each required model: single-phase, single-phase 3-wire, three-phase, or multi-phase.
A polyphase system can be configured by combining multiple units of the same single-phase model.

Model
* GPIB or LAN should be specified when you order
  GPIB:PA-001-2965, LAN:PA-001-2966(Not CE certified)


• Single-phase
Single-phase

Output Power 1.5 kVA 3 kVA 4.5 kVA 6 kVA 7.5 kVA 9 kVA 10.5 kVA 12 kVA
Model DP015S DP030S DP045S DP060S DP075S DP090S DP105S DP120S

High power model new
#
Output Power 24 kVA 36 kVA 42 kVA 48 kVA
Model DP240S DP360S DP420LS DP480LS

Type K (160V/320V output) new
#
Output Power 3 kVA 4.5 kVA 6 kVA 7.5 kVA 9 kVA 10.5 kVA 12 kVA
Model DP030KSC DP045KSC DP060KSC DP075KSC DP090KSC DP105KSC DP120KSC



• Single-phase three-wire system
Single-phase three-wire system

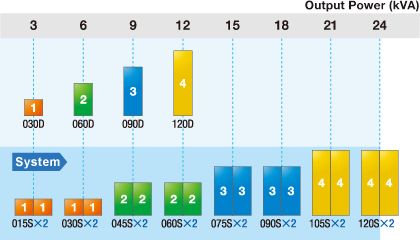

Single-phase three-wire system

Output Power 3 kVA 6 kVA 9 kVA 12 kVA
Model DP030D DP060D DP090D DP120D
#
System
#
Output Power 3 kVA 6 kVA 9 kVA 12 kVA 15 kVA 18 kVA 21 kVA 24 kVA
Model DP015S
×2
DP030S
×2
DP045S
×2
DP060S
×2
DP075S
×2
DP090S
×2
DP105S
×2
DP120S
×2
#
#
High power model new
#
Output Power 48 kVA 72 kVA 84 kVA 96 kVA
Model DP240S
×2
DP360S
×2
DP420LS
×2
DP480LS
×2



• Three-phase
Three-phase

Three-phase

Output Power 4.5kVA 9kVA
Model DP045T DP090T
#
System
#
Output Power 4.5 kVA 9 kVA 13.5 kVA 18 kVA 22.5 kVA 27 kVA 31.5 kVA 36 kVA
Model DP015S
×3
DP030S
×3
DP045S
×3
DP060S
×3
DP075S
×3
DP090S
×3
DP105S
×3
DP120S
×3
#
#
High power model new
#
Output Power 72 kVA 108 kVA 126 kVA 144 kVA
Model DP240S
×3
DP360S
×3
DP420LS
×3
DP480LS
×3



• Multi-phase ( Single-phase / Single-phase three-wire system / Three-phase )

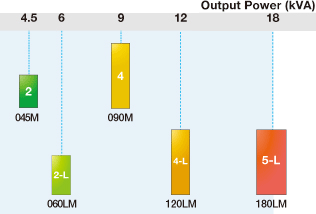

Multi-phase *Maximum capacity for multi-phase/single-phase 3-wire output is 3 kVA for the DP045M and 6 kVA for the DP090M.

Output Power 4.5kVA 9kVA
Model DP045M DP090M
