Product Information
Lock-in Amplifier/Preamplifier
Low Noise Preamplifier
CA5360
5307

CA5360 is a low noise preamplifier for improving the sensitivity of Lock In Amplifiers and for the common mode noise elimination.


Voltage Gain: 100 (40dB).

DC to 1MHz

Input Impedance: 100MΩ.

Input referred noise voltage: 5 nV/√Hz

CMRR: 100dB or more (DC to 100Hz)

DC power provided by the lock-in amplifier LI5600 series



  5307

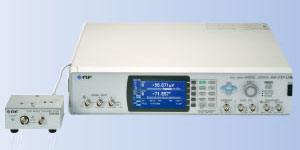

Connecting to the lock-in amplifier LI5600 series
LI5600 series???



5307
