Resonance characteristics of piezo-electric components
Measure the electric
resonance of piezo-electric components such as those used for piezo-electric
actuators. The frequency response analyzer can provide high frequency
resolution of a specified frequency range, which differs from FFTs,
and then detailed characteristics near the resonance point can be

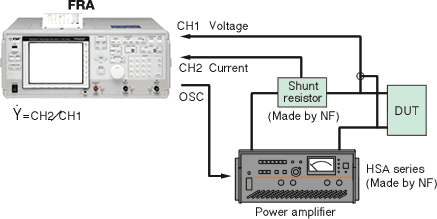

known because of high phase accuracy, ±0.3°. By combination with
the power amplifier, a large amplitude response can also be measured,
not only the small amplitude response.
