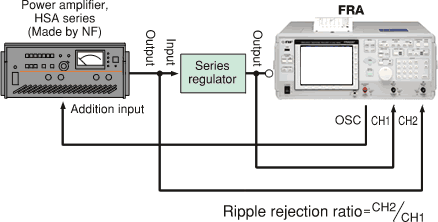

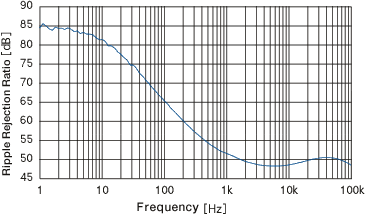

Measure ripple rejection ratios for series regulators. The ripple rejection ratio characteristics are a major feature of a series regulator. Since the frequency response analyzer automatically removes a DC component of up to ±200V, it can measure a high voltage output of the series regulator with a high dynamic range of up to 140dB in combination with a power amplifier (HSA series).
