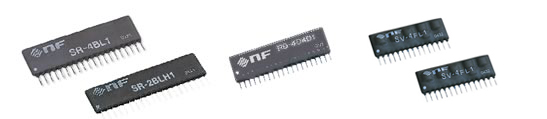

SR series





(pdf : 590 KB)
Model
Characteristics
Rolloff
Cutoff (center) frequency range
Frequency
setting
Type
1
Type
2
Type
3
SR4BL
LPF, 4pole Butterworth

24dB/oct

40Hz to 1.6kHz
400Hz to 20kHz
5kHz to 100kHz
4 externally connected
resistors
SR4FL
LPF, 4pole Elliptic
42dB/oct, equivalent
40Hz to 1.6kHz
400Hz to 20kHz
5kHz to 100kHz
SR4BH
LPF, 4pole Butterworth
24dB/oct
40Hz to 1.6kHz
400Hz to 5kHz


SR4FH
HPF, 4pole Butterworth
42dB/oct, equivalent
40Hz to 1.6kHz
400Hz to 5kHz


SR2BLH
LPF, 2pole Butterworth
12dB/oct
40Hz to 1.6kHz
400Hz to 20kHz
5kHz to 100kHz
2 externally connected resistors
SR1BP
BPF, 1pole pair, Q=5 to 50
6dB/oct BW
40Hz to 1.6kHz
400Hz to 10kHz


SR2BP
BPF, 2pole pair, Q=5
12dB/oct BW
40Hz to 1.6kHz
400Hz to 10kHz


4 externally connected resistors
SR2BE
BEF, 2pole pair, Q=5
Max. attenuation 60dB
40Hz to 1.6kHz
400Hz to 10kHz




RD404D1/2





(pdf : 280 KB)
Model
Description
Frequency range
Control type
RD404D1/2
Logic frequency setting is available with the combination use of SR filters.
10Hz to 16kHz
Digital tunable


SRA series



SRA Series : Low power Consumtion
Model
Characteristics
Rolloff
Cutoff (center) frequency range
Frequency
setting
Type
1
SRA4BL
LPF, 4pole Butterworth
24dB/oct
40Hz to 1.6kHz
4 externally connected
resistors
SRA4FL
LPF, 4pole Elliptic
42dB/oct, equivalent
40Hz to 1.6kHz
SRA4BH
LPF, 4pole Butterworth
24dB/oct
40Hz to 1.6kHz
SRA4FH
HPF, 4pole Butterworth
42dB/oct, equivalent
40Hz to 1.6kHz
SRA2BP
BPF, 2pole pair, Q=5
12dB/oct BW
40Hz to 1.6kHz


SV Series



SV Series : 5,5V or 3,3V of single supply voltage

Model
Characteristics
Rolloff
Cutoff (center) frequency range
Supply voltage

Frequency
setting

Type
1

Type
2

SV4BL
LPF, 4pole Butterworth

24dB/oct

10Hz to 10kHz
100Hz to 100kHz
5V or 3.3V, single supply voltage
4 externally connected resistors
SV4FL
LPF,4pole Elliptic
42dB/oct equivalentt
